PerfectPrime
IR281サーマルカメラ
IR281サーマルカメラ
通常価格
$ 2,399.00 USD
通常価格
$ 2,500.00 USD
セール価格
$ 2,399.00 USD
単価
あたり
受取状況を読み込めませんでした
-
家の隠された世界をすべて明らかにしてその秘密を学びましょう。IR281は非常に鮮明な熱視界を表示する強力な赤外線カメラであり、深刻な問題になる前に問題を見つけるのに役立ちます。
顧客向けに設計された2.8インチのタッチスクリーンディスプレイにより、現場またはオフサイトの状況を完全にライブ分析できます。画面の任意の場所を押すだけで、正確な温度を取得できます。さらに、この赤外線カメラの熱解像度は206 x 156で、非常に鮮明な熱画像が得られます。熱損失、断熱、電気の問題から害虫駆除や水漏れまで、問題をすぐに見つけてください。この強力なツールは問題を明らかにします。
これらすべてを超えて、私たちは家の検査官や他の専門家のために、彼らの仕事に合わせた機能を備えたこの赤外線カメラを作りました。私たちは、優れた赤外線カメラの特徴を理解しており、何よりも手頃な価格で提供しています。
-
特徴
2.8インチディスプレイTFTIPSパネル
206 x 156（32,136）熱分解能
CMOS解像度：640x 480
からの温度範囲 -40°F to 626 °F (-40°C - 330°C)
録画
コンピューターモニターへのライブストリーム
CSVファイルとしてエクスポート可能な放射分析データ
Androidオペレーティングシステム
充電式リチウムイオン電池
-
60日間の返金保証
お客様に当社の製品に満足していただくために、60日間の返金保証をご用意しております。何らかの理由で完全に満足できない場合は、製品を返品して全額返金してください。
60日間の返金保証の詳細については、cs@perfectprime.com までメールをお送りください。
まとめて購入したいですか？ 10ユニット以上のご注文で、ほとんどの製品の一括購入割引を提供しています。ボリュームが大きいほど、割引は大きくなります。詳細については、こちらからお問い合わせください。 ビジネスお問い合わせフォーム.
Capture Every Detail at 10m
Featuring one button autofocus and the longer measurement distance, PC 230 can be used under more scenes with 256 x 192 IR Detector and 2 M pixels for visible light Utilizing the New SharpIR composite image enhancement technology, it can provide you with detailed infrared thermal imaging and dual light fusion images to help you find potential faults more quickly
Thermal Imaging to GO BEYOND THE UNKNOWN
Excellent Imaging Quality
PC210 Adopts the New SharpIR composite image enhancement technology
Based on advanced and deep learning technology, SharpIR performs various optimization processes such as defogging, sharpening, contrast enhancement, and lossless magnification on low-resolution images to enhance the clarity of infrared images.
Unoptimized
Optimized
PC Software ThermoTools
PC Analysis Software
Professional & All-round
ThermoTools can help you conduct professional comprehensive analysis and postsecondary processing of the original infrared thermal image taken by the thermal camera, and realize the unified management of the data. This set of software has a friendly interface, powerful functions, simple operation and easy operation
Features
- Multiple image/video import methods: SD card, FTP, USB, cloud file
- Powerful image processing capabilities: image batch analysis, trend analysis, etc.
- Support real-time video streaming/video playback, can track the max/min temperature
- Material analysis and report generation: optional report templates, free editing, etc.

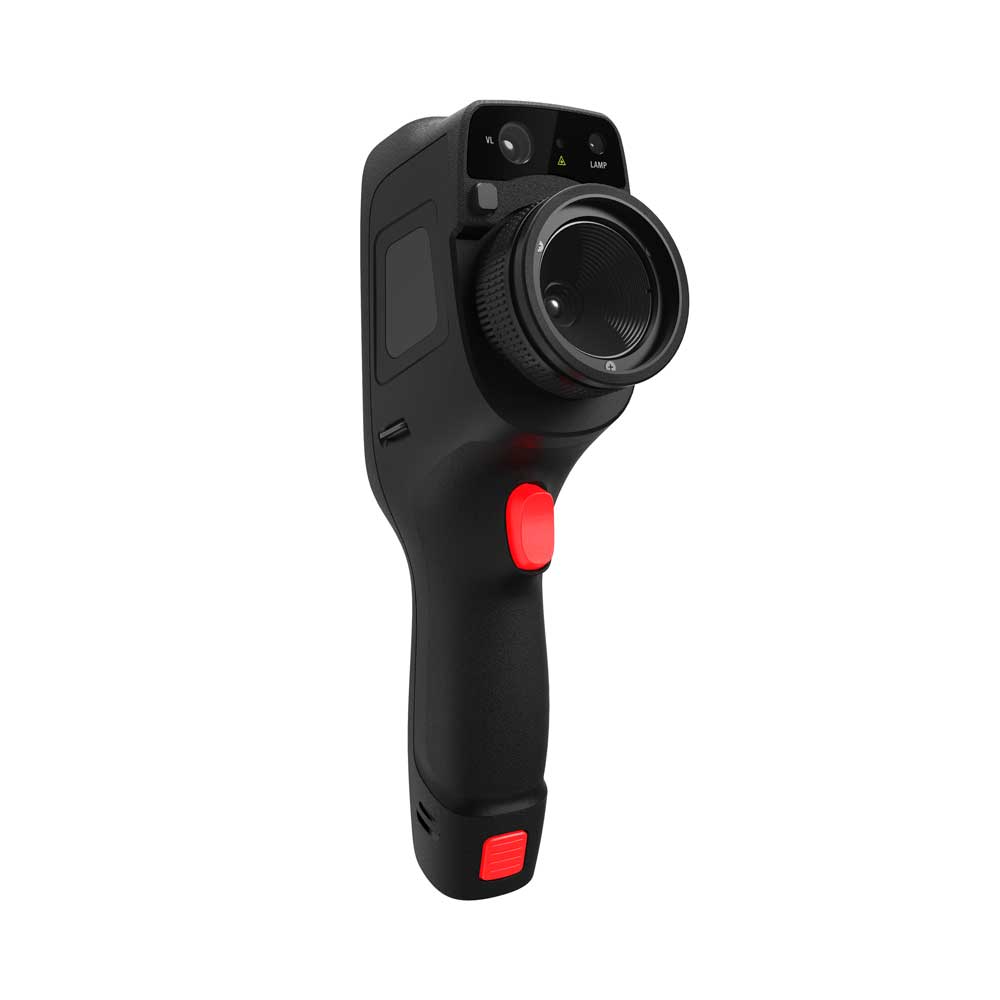

SPECIFICATIONS FOR D SERIES
Imaging and optics
| Model | D192F | D192M | D384F | D384M | D384A |
|---|---|---|---|---|---|
| Detector type | VOx | VOx | VOx | VOx | VOx |
| Infrared resolution | 192
× 144@25 μ m | 192 × 144@25 μ m | 384 × 288@25 μ m | 384 × 288@25 μ m | 384 × 288@25 μ m |
| Super resolution technology | / | / | Yes, Upgrade to 768 × 576 | Yes, Upgrade to 768 × 576 | Yes, Upgrade to 768 × 576 |
| Wavelength range | 7.5 to 14 μ m | 7.5 to 14 μ m | 7.5 to 14 μ m | 7.5 to 14 μ m | 7.5 to 14 μ m |
| Focal length | 7 mm | 7 mm | 19 mm | 19 mm | 15 mm |
| Field of view | 38° × 29° | 38° × 29° | 28° × 22° | 28° × 22° | 35° × 27° |
| Minimum object distance | 1 m | 0.5 m | 1 m | 0.5 m | 0.4 m |
| D:S | 289:1 | 289:1 | 775:1 | 775:1 | 625:1 |
| NETD | ≤ 50 mK | ≤ 50 mK | ≤ 45 mK | ≤ 45 mK | ≤ 40 mK |
| Infrared frame rate | 25 Hz / 9 Hz | 25 Hz / 9 Hz | 25 Hz / 9 Hz | 25 Hz / 9 Hz | 25 Hz / 9 Hz |
| Focusing mode | Focus free | Manual | Focus free | Manual | Electric / Automatic |
| Digital zoom | 1.1x to 4x | 1.1x to 4x | 1.1x to 4x | 1.1x to 4x | 1.1x to 4x |
| Shot recognition | / | Manual | / | Manual | / |
Measurement and analysis
| Model | D192F | D192M | D384F | D384M | D384A |
|---|---|---|---|---|---|
| Measurement range | - 20°C to 350°C | - 20°C to 150°C, 100°C to 650°C, Optional 650°C to 1500°C (High temperature lens is required) | - 20°C to 350°C | - 20°C to 150°C, 100°C to 650°C, Optional 650°C to 1500°C (High temperature lens is required) | - 20°C to 150°C, 100°C to 650°C |
| Measurement accuracy | ±2°C or ±2%, whichever is greater | ±2°C or ±2%, whichever is greater | ±2°C or ±2%, whichever is greater | ±2°C or ±2%, whichever is greater | ±2°C or ±2%, whichever is greater |
| Analyzed target | Spot × 5, Line × 2, Area × 5 | Spot × 5, Line × 2, Area × 5 | Spot × 5, Line × 2, Area × 5 | Spot × 5, Line × 2, Area × 5 | Spot × 5, Line × 2, Area × 5 |
| Tracking / Alarm | Full screen maximum, minimum and average temperature tracking; The maximum, minimum and average temperature tracking of analyzed target; full screen temperature threshold alarm (image) | Full screen maximum, minimum and average temperature tracking; The maximum, minimum and average temperature tracking of analyzed target; full screen temperature threshold alarm (image) | Full screen maximum, minimum and average temperature tracking; The maximum, minimum and average temperature tracking of analyzed target; full screen temperature threshold alarm (image) | Full screen maximum, minimum and average temperature tracking; The maximum, minimum and average temperature tracking of analyzed target; full screen temperature threshold alarm (image) | Full screen maximum, minimum and average temperature tracking; The maximum, minimum and average temperature tracking of analyzed target; full screen temperature threshold alarm (image) |
| Isothermals | Available | Available | Available | Available | Available |
| Temperature measuring
parameters | Emissivity, reflected temperature, dew point, target distance, humidity | Emissivity, reflected temperature, dew point, target distance, humidity | Emissivity, reflected temperature, dew point, target distance, humidity | Emissivity, reflected temperature, dew point, target distance, humidity | Emissivity, reflected temperature, dew point, target distance, humidity |
Image display
| Model | D192F/ D192M/ D384F/ D384M/ D384A |
|---|---|
| Display screen | 4" LCD |
| Digital camera | 5 MP |
| Image mode | IR, VIS, MIF and PIP |
| Image adjustment | Automatic, semi automatic, manual |
| Color palettes | White Hot, Fulgurite, Iron Red, Hot Iron, Medical, Arctic, Rainbow 1, Rainbow 2 |
Storage and transmission
| Model | D192F | D192M | D384F | D384M | D384A |
|---|---|---|---|---|---|
| Storage media | Local storage (16 GB) and TF card (16 GB and up to 128 GB) Image storage | Local storage (16 GB) and TF card (16 GB and up to 128 GB) Image storage | Local storage (16 GB) and TF card (16 GB and up to 128 GB) Image storage | Local storage (16 GB) and TF card (16 GB and up to 128 GB) Image storage | Local storage (16 GB) and TF card (16 GB and up to 128 GB) Image storage |
| Image storage format | JPG with temp info | JPG with temp info | JPG with temp info | JPG with temp info | JPG with temp info |
| Video storage without temperature information | Mp4 format can be used to record audio synchronously | Mp4 format can be used to record audio synchronously | Mp4 format can be used to record audio synchronously | Mp4 format can be used to record audio synchronously | Mp4 format can be used to record audio synchronously |
| Video storage with temperature information | Irgd for temperature analysis | Irgd for temperature analysis | Irgd for temperature analysis | Irgd for temperature analysis | Irgd for temperature analysis |
| External interface | Micro USB, Micro HDMI, DC(12V), TF card slot | Micro USB, Micro HDMI, DC(12V), TF card slot | Micro USB, Micro HDMI, DC(12V), TF card slot | Micro USB, Micro HDMI, DC(12V), TF card slot | Micro USB, Micro HDMI, DC(12V), TF card slot |
| Laser | 645~655nm, Class 2 laser, <1mW, only indicating the measured target | 645~655nm, Class 2 laser, <1mW, only indicating the measured target | 645~655nm, Class 2 laser, <1mW, only indicating the measured target | 645~655nm, Class 2 laser, <1mW, only indicating the measured target | 645~655nm, Class 2 laser, <1mW, only indicating the measured target |
| Audio | Recording and playback through microphones and speakers respectively | Recording and playback through microphones and speakers respectively | Recording and playback through microphones and speakers respectively | Recording and playback through microphones and speakers respectively | Recording and playback through microphones and speakers respectively |
| Bluetooth | / | / | / | / | Available |
| WIFI | Yes, it can be connected to the mobile terminal for image and real time video transmission | Yes, it can be connected to the mobile terminal for image and real time video transmission | Yes, it can be connected to the mobile terminal for image and real time video transmission | Yes, it can be connected to the mobile terminal for image and real time video transmission | Yes, it can be connected to the mobile terminal for image and real time video transmission |
Power system
| Model | D192F/ D192M/ D384F/ D384M/ D384A |
|---|---|
| Battery type | Lithium-ion rechargeable battery |
| Battery working time | ≥ 4 hours |
| Power management | Timed shutdown and sleep mode |
| Charging mode | The device can be charged through desktop charger after shutdown. |
| Charging time | 5 hours |
Environmental parameters
| Model | D192F/ D192M/ D384F/ D384M/ D384A |
|---|---|
| Working temperature | - 10°C to 50°C |
| Storage temperature | - 40°C to 70°C |
| IP rating | IP54 |
| Certification | CE, FCC, ROHS, KCC, Anatel, UN38.3, MSDS |
Physical parameters
| Model | D192F | D192M | D384F | D384M | D384A |
|---|---|---|---|---|---|
| Weight | ≤ 735 g (with battery) | ≤ 840 g (with battery) | ≤ 735 g (with battery) | ≤ 840 g (with battery) | ≤ 735 g (with battery) |
| Size (L
× W × H) | 274
× 97 × 78 mm | 274 × 97 × 78 mm | 274 × 97 × 78 mm | 274 × 110 × 78 mm | 274 × 91 × 78 mm |
| Software kit | ThermoTools | ThermoTools | ThermoTools | ThermoTools | ThermoTools |
| Standard | A device, Wrist strap, Lithium-ion battery, Power adapter, Adapter plug, Micro USB cable, Micro HDMI cable, Quick Start Guide, Instructions, Data download card, Capacitive screen gloves, TF card (16 GB) , EPP case | A device, Wrist strap, Lithium-ion battery, Power adapter, Adapter plug, Micro USB cable, Micro HDMI cable, Quick Start Guide, Instructions, Data download card, Capacitive screen gloves, TF card (16 GB) , EPP case | A device, Wrist strap, Lithium-ion battery, Power adapter, Adapter plug, Micro USB cable, Micro HDMI cable, Quick Start Guide, Instructions, Data download card, Capacitive screen gloves, TF card (16 GB) , A carrying case | A device, Wrist strap, Lithium-ion battery, Power adapter, Adapter plug, Micro USB cable, Micro HDMI cable, Quick Start Guide, Instructions, Data download card, Capacitive screen gloves, TF card (16 GB) , A carrying case | A device, Wrist strap, Lithium-ion battery, Power adapter, Adapter plug, Micro USB cable, Micro HDMI cable, Quick Start Guide, Instructions, Data download card, Capacitive screen gloves, TF card (16 GB) , A carrying case |
| Options | Lithium-ion battery, Carrying bag, Desktop charger, Tripod interface, Tripod, Sunshade | Lithium-ion battery, Carrying bag, Desktop charger, Tripod interface, Tripod, Sunshade, Expanded lens | Lithium-ion battery, Carrying bag, Desktop charger, Tripod interface, Tripod, Sunshade | Lithium-ion battery, Carrying bag, Desktop charger, Tripod interface, Tripod, Sunshade, Expanded lens | Lithium-ion battery, Carrying bag, Desktop charger, Tripod interface, Tripod, Sunshade, Bluetooth headset |
Optional Lens Information List
Standard Lens
| Model | D192M | D384M |
|---|---|---|
| Focal length | 7mm | 19mm |
| FOV | 38° x 29° | 28° x 22° |
| IFOV | 3.45mrad | 1.29mrad |
| Min focus distance | 0.5m | 0.5m |
Wide Angle
| Model | D192M | D384M |
|---|---|---|
| Focal length
| / | 8.8mm |
| FOV | / | 57° x 45° |
| IFOV | / | 2.65mrad |
| Min focus distance | / | 0.3m |
Ultra Telephoto
| Model | D192M | D384M |
|---|---|---|
| Focal length
| 19mm | 40mm |
| FOV | 14.4° x 10.8° | 13.7° x 10.3° |
| IFOV | 0.65mrad | 0.62mrad |
| Min focus distance | 1m | 1m |
High Temp
| Model | D192M | D384M |
|---|---|---|
| Temp Measurement Range | 650°C~1500°C | 650°C~1500°C |
All Palettes Can Display The Temperature
Thermal images taken by PC201
IR
VIS
MIF
PIP
