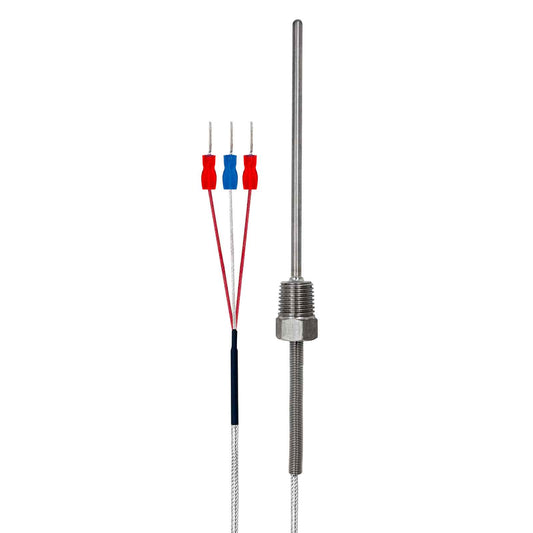

Product Specifications

Operating Temperature: -328-392℉ (-200-200℃)
Thermocouple Type: RTD
Probe Material: F46
Accuracy: ±1.5°F or °C
Junction Type: Ungrounded
Tip Diameter: 0.157" (4mm)
Tip Length: 1.181" (30mm)
Wire Length: 78.74" (2000mm)
Connector Type: Cold pressed terminals
Application: Air, Liquid & Solid Object Temperature measurement

Product Description

RTDs - or Resistance Temperature Detectors - are temperature sensors that contain a resistor that changes resistance value as its temperature changes. They have been used for many years to measure temperature in a laboratory and industrial processes, and have developed a reputation for accuracy, repeatability, and stability.

4 wire connection is the most accurate measurement. The instrument measures the lead resistance of all four lead wires removing these values for its reading

COMPATIBLE BRANDS

Fluke
Flir
Extech
Omega
And other brands thermometers that use a K-type probe

WORKS WITH

TC2100 - 2-Channels Thermocouple Thermometer
TC9815 - 4-Channels Thermocouple Thermometer
TC0520 - 4-Channels Thermocouple Thermometer
TC0521 - 4-Channels Thermocouple Thermometer
TC0301 - 2-Channels Thermocouple Thermometer
TC0304 - 4-Channels Thermocouple Thermometer
TC0309 - 4-Channels Thermocouple Thermometer
TC0378 - 4-Channels Thermocouple Thermometer

RTD Sensors

PerfectPrime TL4050 4 Wires RTD Temperature Probe (-58 - 392°F)

PerfectPrime TL4200 4 Wires RTD Temperature Probe (-328 - 392°F)
