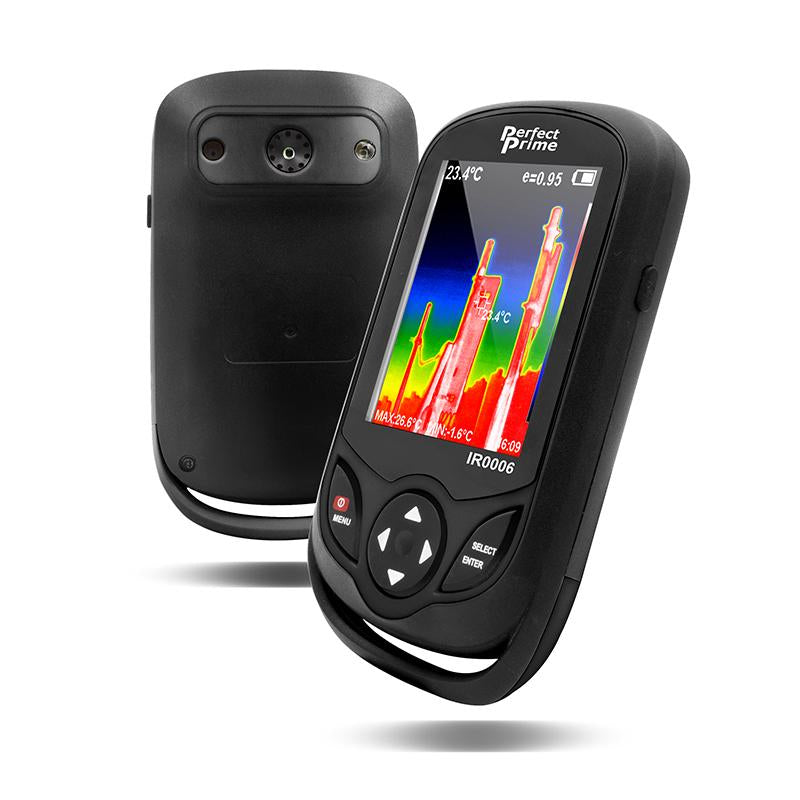

perfectprime thermal camera IR0006 front and back

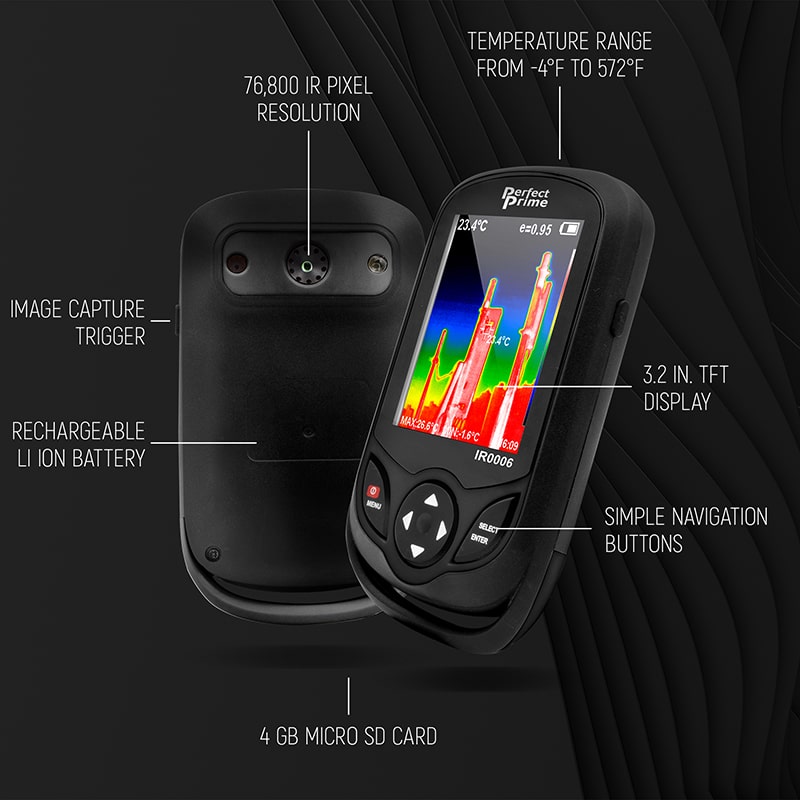

IR0006 features

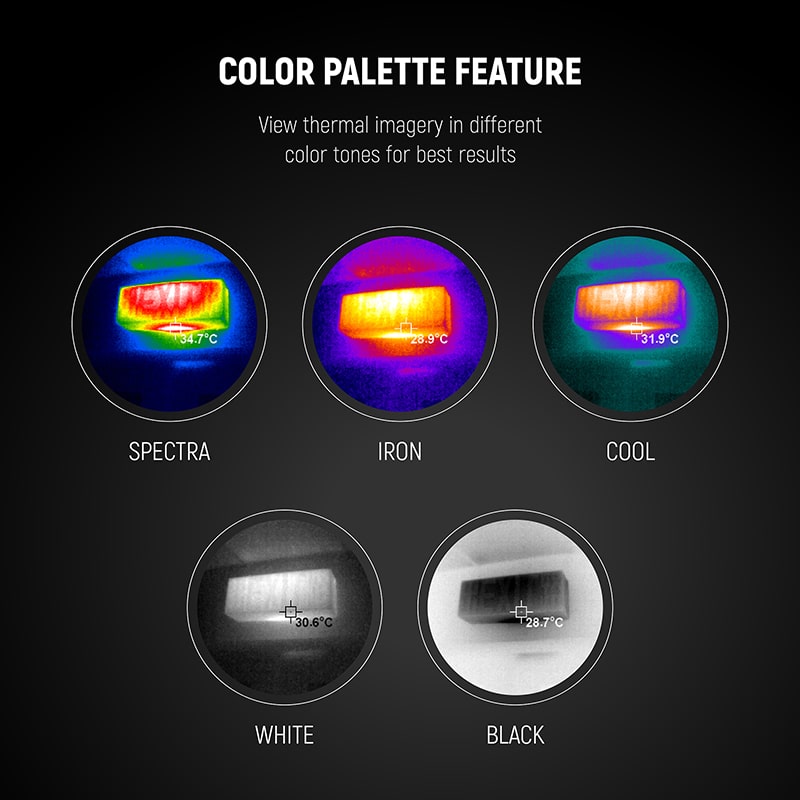

IR0006 color palette

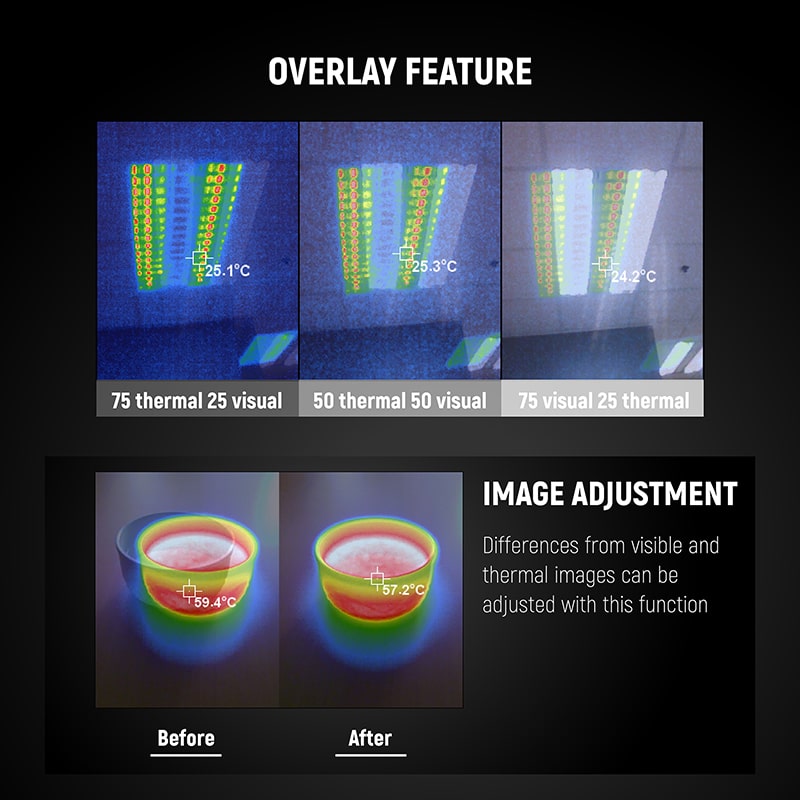

IR0006 overlay feature

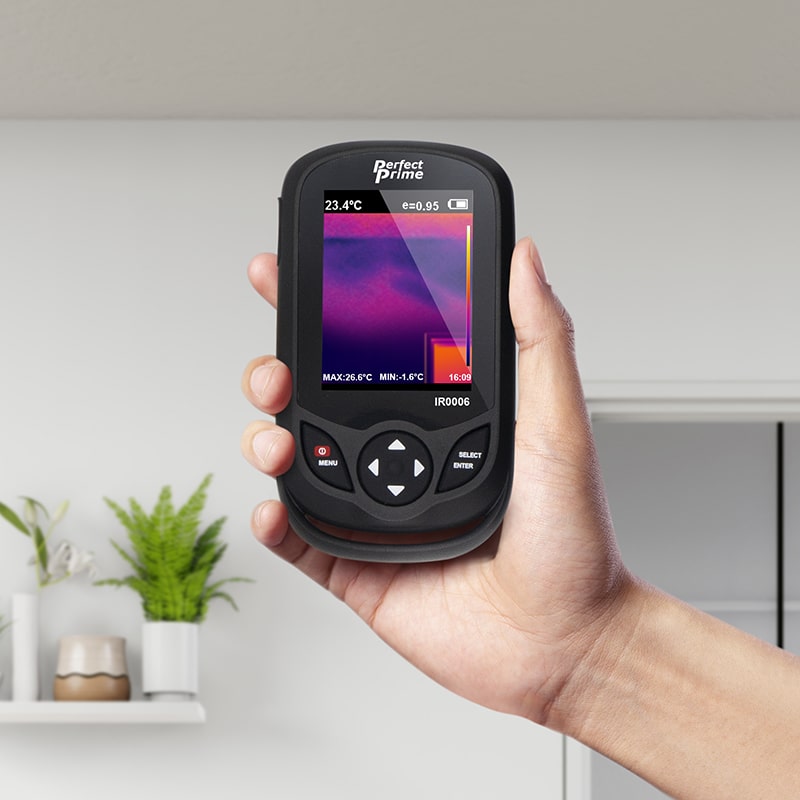

IR0006 home inspection

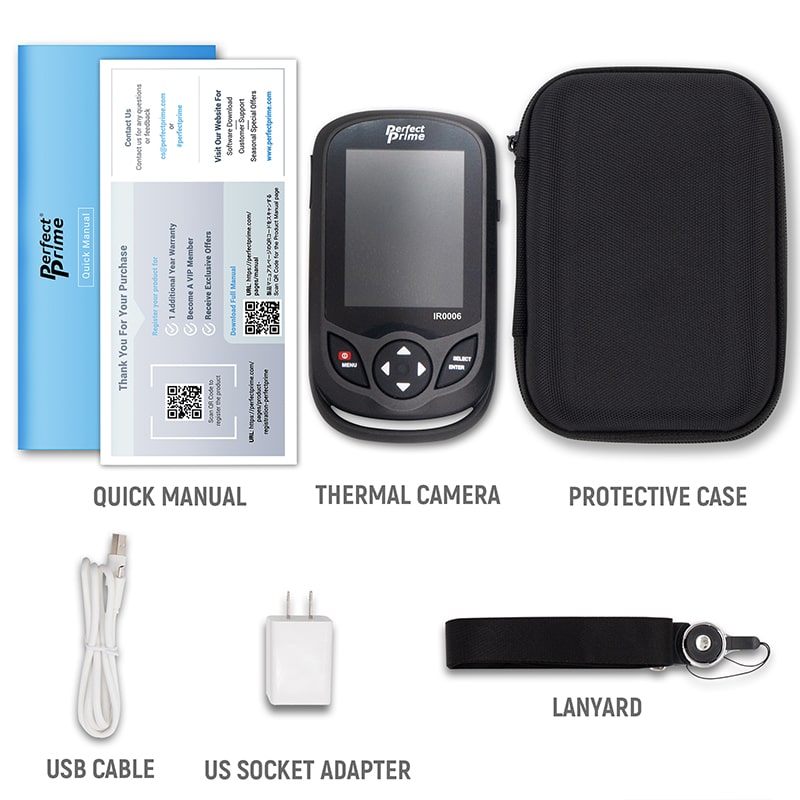

IR0006 full set

IR0006 Thermal Camera

Regular price $ 599.99 USD Sale price $ 700.00 USD Unit price per
  • Thermal Camera IR0006

    Jobs that require the utmost thermal imagery clarity need look no further the compact thermal camera IR0006. It hosts an impressive 320 x 240 Thermal Resolution which delivers 76800 pixels, making applications such as checking electrical wires, circuit boards and underfloor heating more easy to analyse and become cost efficient. Designed to be robust and ergonomic, the professionally designed tool fits into the palm of your hands with easy access to buttons so that it can be operated single-handedly, perfect for hard to reach places and tight spots. In addition to providing the necessary features for thermal inspection, the IR0006 is made to be cost effective. Top thermal resolution, low cost.

    • 3.2 in. TFT Display
    • 320 x 240 (76,800) Thermal Resolution
    • Temperature Range from -4°F to 572°F (-20°C to 300°C)
    • 5 Color palettes to option
    • Rechargeable Li ion Battery
    • 4 GB micro SD card
    • Simple Navigation Buttons
  • Specification Description
    Infrared image resolution  320 x 240
    Visible image resolution  640x480 (300,000 pixel)
    Field angle/shortest focus length  56°x42°/4.0mm
    Thermal sensitivity  0.07°C
    Temperature measurement range  -20~300°C(-4°F~572°F)
    Test and measurement precision

    ±2°C or ±2%

    Display screen  3.2" full angle TFT display screen
    Emissivity  Adjustable from 0.01 to 1.0
    Image capture frequency  9 hz
    Wavelength coverage  8-14um
    Focus mode  Fixed
    Color palette  Spectra, iron, cool, black and white
    View option  Full infrared and full vision Visible image with 25% increments
    Storage Medium  Built-in 4G(above 2 million image stored)
    Image format  JPG
    Power supply  Built-in chargeable battery
    USB  Micro USB 2.0
    Automatic power-off time  Selectable: 5 minutes/20 minutes/ do not power off automatically
    Product size(length x width x height)  140 mmx 80 mmx 28 mm
    Product Weight  208g
    Work temperature  0°C - 45°C
    Storage temperature  -20°C -60°C
    Relative humidity  <85%RH
  • 60 Days Money-Back Guarantee

    To make sure our customers are satisfied with our products, we are happy to offer a 60 days Money-Back Guarantee. If for any reason you are not completely satisfied, return the product for a full refund.

    Just drop us an email at cs@perfectprime.com for more details about our 60 Days Money-Back Guarantee.

  • Download User (English) Manual

    Download User (Japanese) Manual

    Download User (German) Manual

    Download User (Spanish) Manual

  • IR0006 Thermal Camera Product Video

  • Looking to purchase in bulk? We offer bulk purchase discounts for most products on orders with a minimum of 10 units. The higher the volume, the bigger the discount. Contact us for more details here: Business Contact Form.
