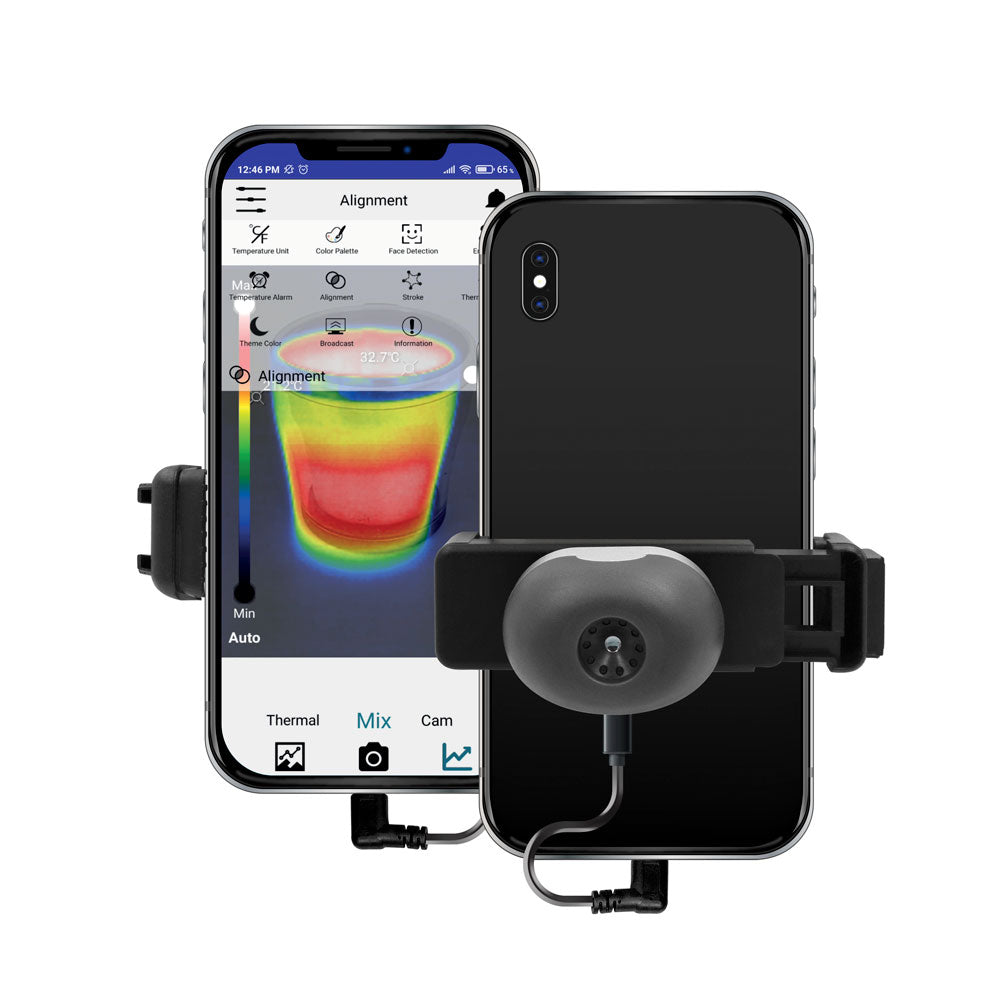

IR501 front and back view with phone
IR501 Android
IR501 Android
IR501 inspection

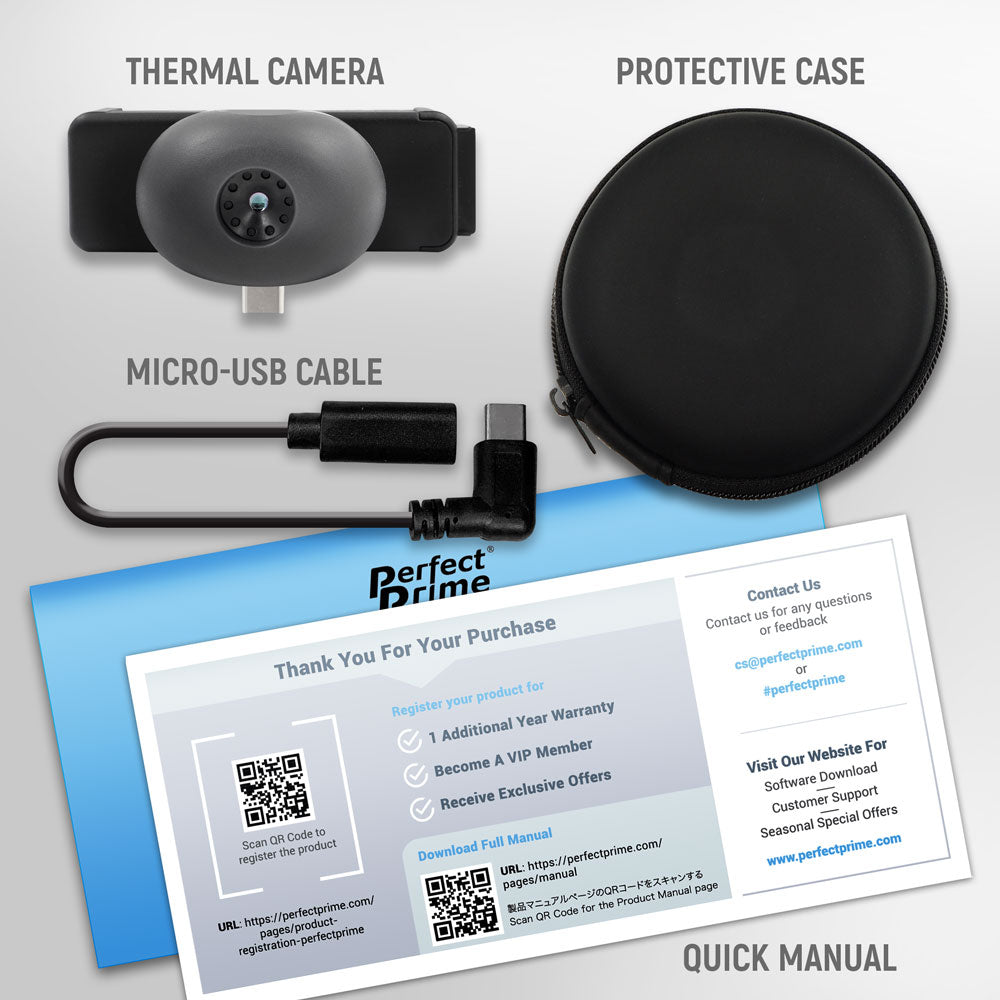

IR501 Full Set

IR501 Thermal Camera for Android Phones

Regular price $ 288.99 USD Sale price $ 300.00 USD Unit price per
  • IR501 Multi Points Dynamic monitoring Thermal Camera for Android Phones

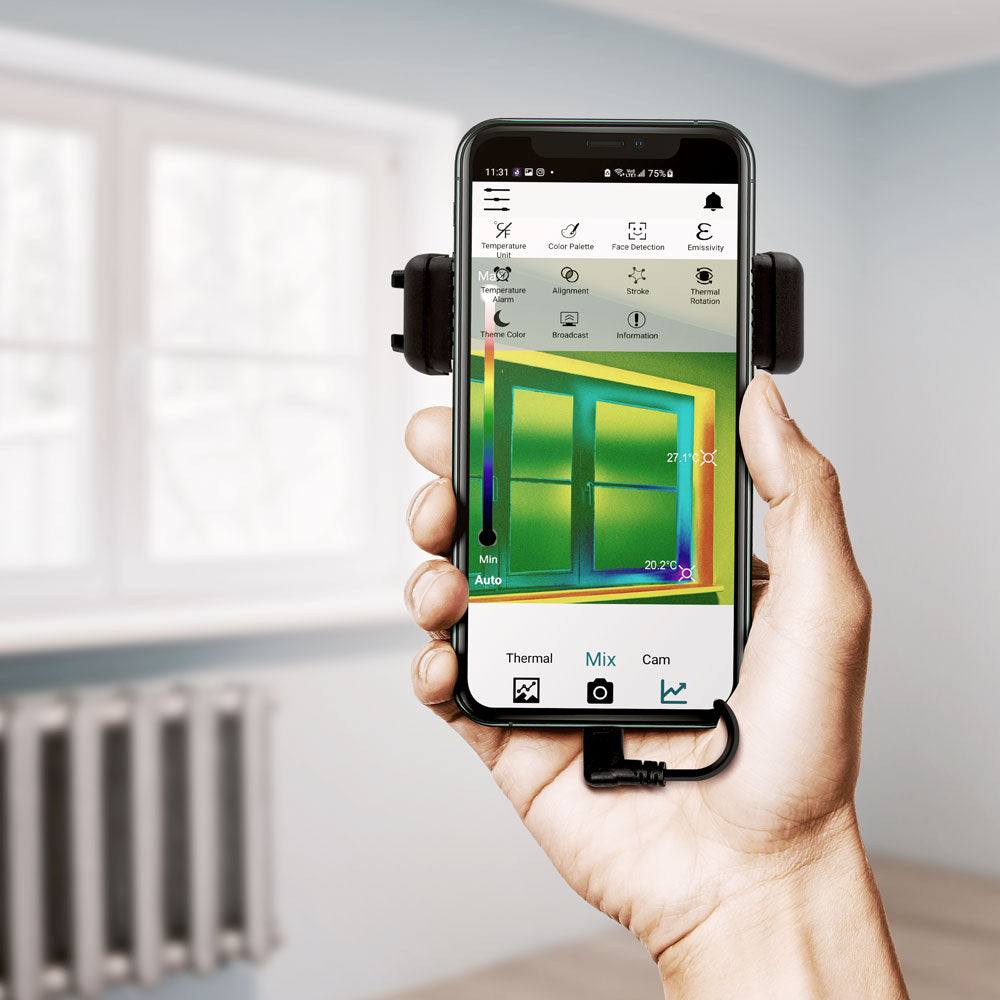

    Transform your android cellphone into a powerful thermal camera with the IR501. Conveniently take the IR501 to your inspection site and simply connect it to your cellphone and open an app to instantly spot thermal heat signatures.

    Diagnose thermal problems with clarity with the powerful 206 x 156 thermal sensor bringing true thermal vision onto your cellphone screen. The lightweight design and powered via cellphone battery ensures that this device is not only user-friendly but built for prolonged use.

    Measure the unfathomable, and analyze the improbable by providing thermal imaging and temperature measurements in a new way. Plugin the IR501 and download the app to start seeing thermal on your Android Phone.

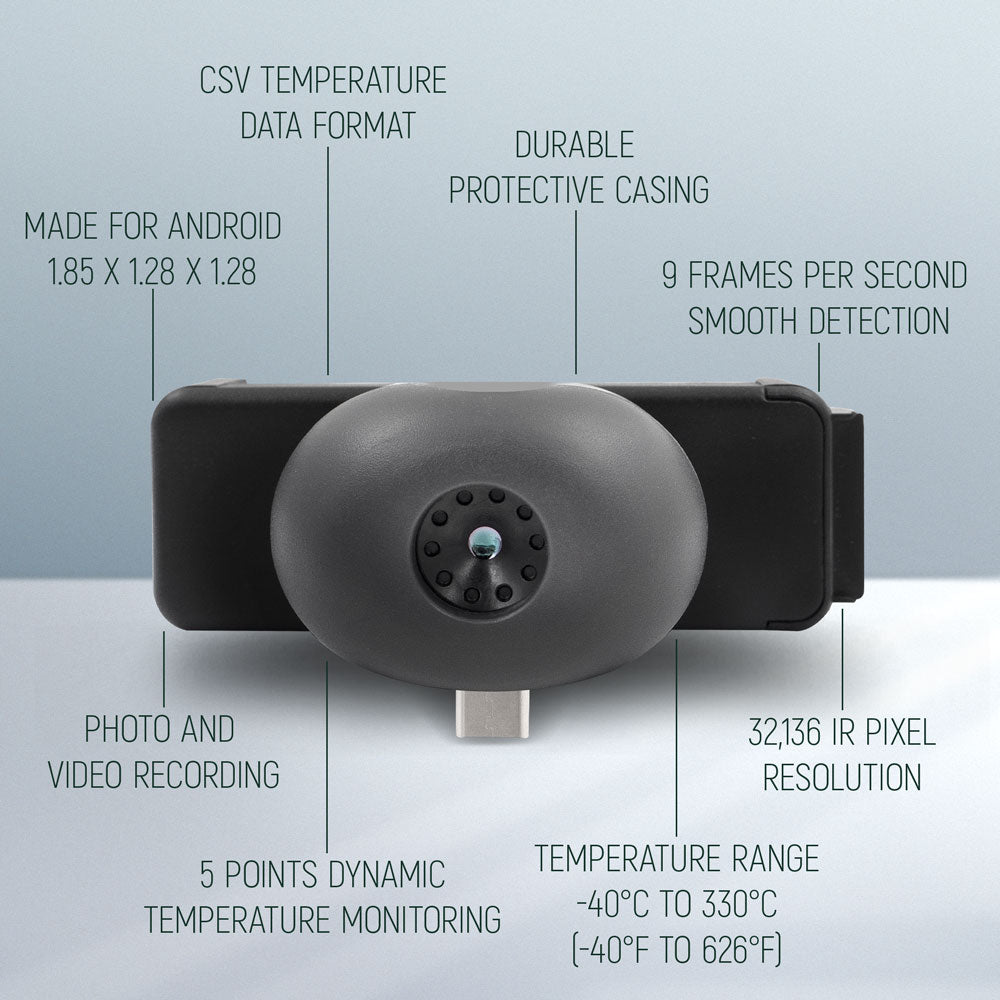

    • Durable protective
    • Temperature Range -40°F to 626°F
    • 32,136 IR Pixel Resolution
    • Visual Camera image integration (Mobile cam image + Thermal image)
    • 9 Frames Per Second Smooth Detection
    • 5 points dynamic temperature monitoring
    • Photo and video recording
    • Auto and custom color scale
    • CSV temperature data format

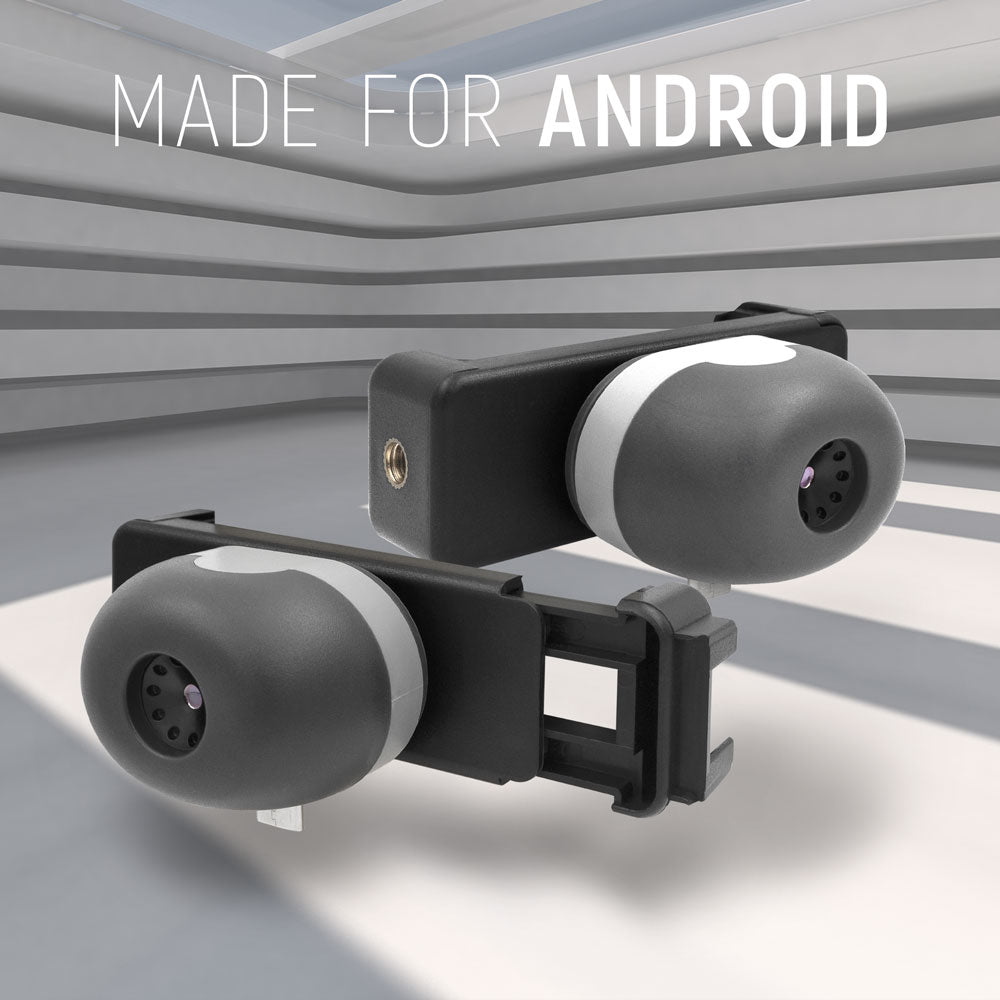

    • Made for Android


  • Specification Description
    Resolution  206 x 156
    FOV (angles in degrees) 35.4° (H), 26.8° (V)
    Maximum Frame Rate  9 Hz
    Max Scene Temperature Range -40°F to 626°F (-40°C to 330°C)
    Sensor Sensitivity  65mK (typ), < 100mK(max) @25C
    Detection Range

    330m

    Recognition Range 83m
    Identification Range 43m
    Distance to Spot Ratio

    56:1

    Focus Fixed
    f-number(focal length/aperture) f/1.2
    Focal length

    4.0mm

    Accuracy

    +/-5°C or 5%

    Operating Temperature

    32°F to 104°F ( 0 to 40°C)

    Storage Temperature  14°F to 122°F (-10 to 50°C)
    Power Consumption 300mW
    Android Dongle connector Type USB Type-C
    Android Dongle size 47mm x 32.5mm x 32.5mm
    Android Dongle weight 34g
  • 60 Days Money-Back Guarantee

    To make sure our customers are satisfied with our products, we are happy to offer a 60 days Money-Back Guarantee. If for any reason you are not completely satisfied, return the product for a full refund.

    Just drop us an email at cs@perfectprime.com for more details about our 60 Days Money-Back Guarantee.

  • Download User (English) Manual

    App Download

  • Looking to purchase in bulk? We offer bulk purchase discounts for most products on orders with a minimum of 10 units. The higher the volume, the bigger the discount. Contact us for more details here: Business Contact Form.
